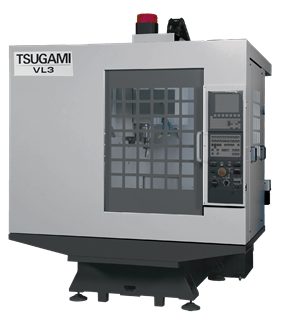

Precision Machinging Centre
VL3
特征
??Utilizes large tooling zone for a large workpiece or multiple workpieces processing
??The spindle is separated from the ATC arm and the tool magazine?is fixed to the column top, the position of magazine will not affect the tooling area. Only the spindle moves up and down so that tooling design becomes easy.
? 20 tools can be stored in the tool magazine as standard.(Maximum mountable tool number: 21 tools)
Feature
| Machine tool parameter | VL3 |
| X/Y/Z axis stroke | 700×450×350mm |
| Table size | 850×450mm |
| Max. load on table | 300kg |
| Main spindle speed? | 100～10,000min-1 |
| Main spinlde motor | 13.0/3.7kW |
| Tool shank |
BIG PLUS BBT30 (JIS B 6339-1998 BT30) |
| Width×Depth×Height | 1,900×2,280×2,385mm |
| Weight | 3,200kg |
? The above machine parameters are for reference only.
? For special technical specifications, please contact our sales offices or authorized distributors.
? To continuously improve product performance, we reserve the right to modify product designs, specifications, and parameters without prior notice.
